SIZE:SM[27.5"] / MD[27.5"] / LG[27.5"]
¥144,100(税込)
トレイルバイクとしてのもっとも基本的な要素を押さえた1台です。ハイエンドモデル譲りの先進のトレイルライドジオメトリーを採用し、価格以上の高いオフロード走行性能を持っています。小柄な方やジュニアバイクからのステップアップにもベストフィットするXSサイズも用意しています。
Frame | Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube | Dropper Post Compatible |
---|---|
Fork | Suntour XCM32 DS NLO 120mm |
Front Travel | 120 |
Headset | Rocky Mountain ZS44|56 | Loose Ball Bearings | 1-1/8" Reducer Crown Race |
Stem | Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 40mm |
Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
Grips | Rocky Mountain Lock On Light |
Brakes | Tektro HD-M280 | Shimano Pad Compatible |
Shifters | MicroShift Xpress Plus 9spd |
Rear Derailleur | MicroShift Advent With Clutch |
Cranks & Chainring | Rocky Mountain Microdrive 3PC | 30T | 76mm Asymmetrical BCD | Crank Length: SM-MD = 170-mm | LG= 175mm |
Bottom Bracket | Sealed Cartridge Bearing |
Cassette | MicroShift CS-H093 11-46T |
Chain | KMC X9 |
Pedal | Nylon Platform |
Front Hub | Rocky Mountain QR |
Rear Hub | Rocky Mountain QR |
Spokes | 2.0 Stainless |
Rims | Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
Tires | F: Kenda Amrak 27.5 x 2.4 // R: Kenda Amrak 27.5 x 2.4 |
Seatpost | Rocky Mountain 30.9mm |
Saddle | Rocky Mountain 148 Steel |
Weight | This information isn't available yet. We will update the weight of this model as soon as possible. |
Notes | 商品の仕様と価格に関して予告なく変更となる可能性がございます。予めご了承ください。 |

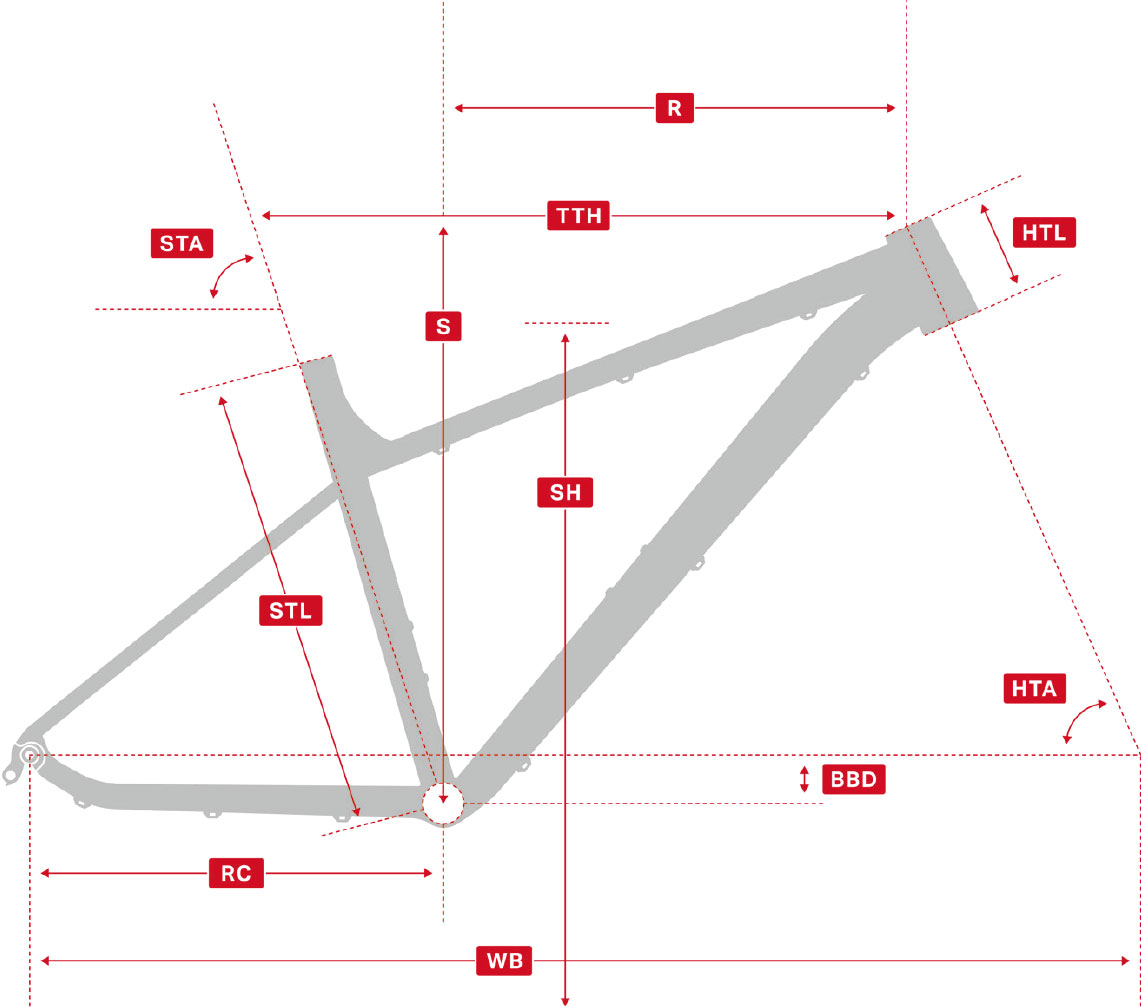

XS | SM | MD | LG | |
Top Tube Horizontal (mm) | 561 | 586 | 610 | 638 |
Head Tube Angle (deg) | 66 | 66 | 66 | 66 |
Head Tube Length (mm) | 95 | 95 | 100 | 110 |
Seat Tube Angle (deg) | 74.5 | 74.5 | 74.5 | 74.5 |
Seat Tube Length (mm) | 345 | 380 | 420 | 445 |
Rear Centre (mm) | 430 | 430 | 430 | 430 |
Bottom Bracket Drop (mm) | 48 | 48 | 48 | 48 |
Reach (mm) | 397 | 422 | 445 | 470 |
Stack (mm) | 592 | 592 | 596 | 605 |
Standover Height (mm) | 748 | 754 | 767 | 776 |
Wheelbase (mm) | 1110 | 1135 | 1159 | 1189 |
Sizing Chart (cm) | 152.5~ 165 | 160~ 170 | 167.5~ 180 | 177.5~ 188 |
